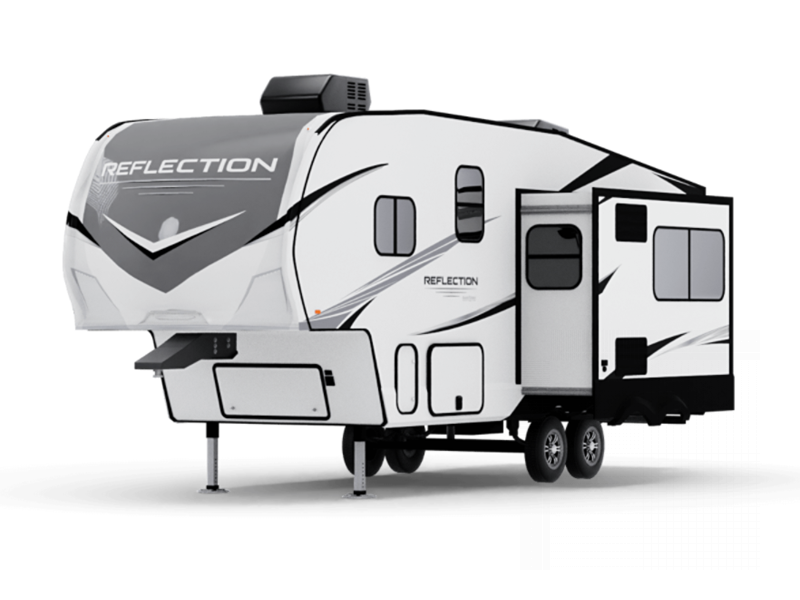

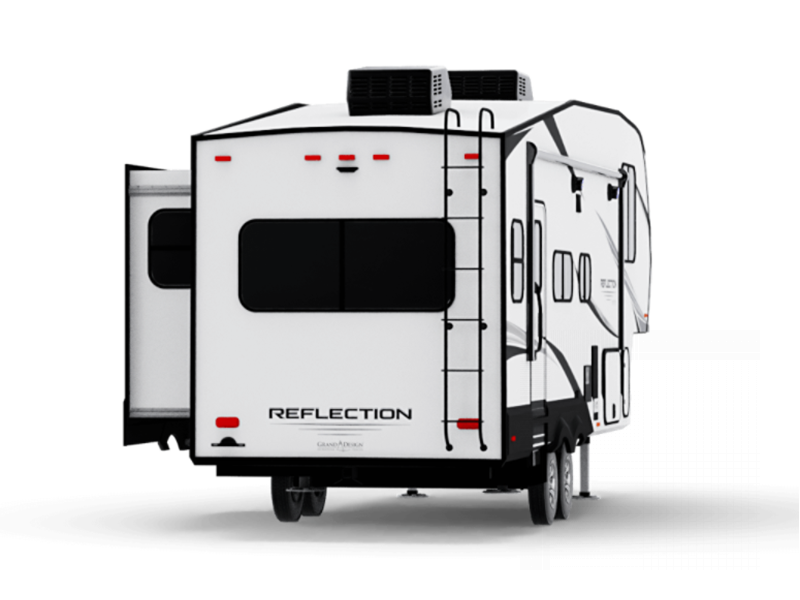

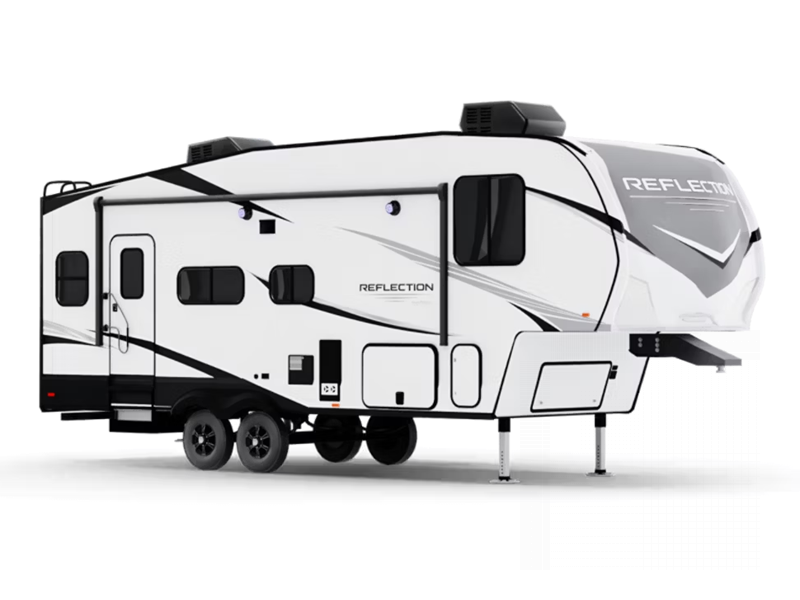

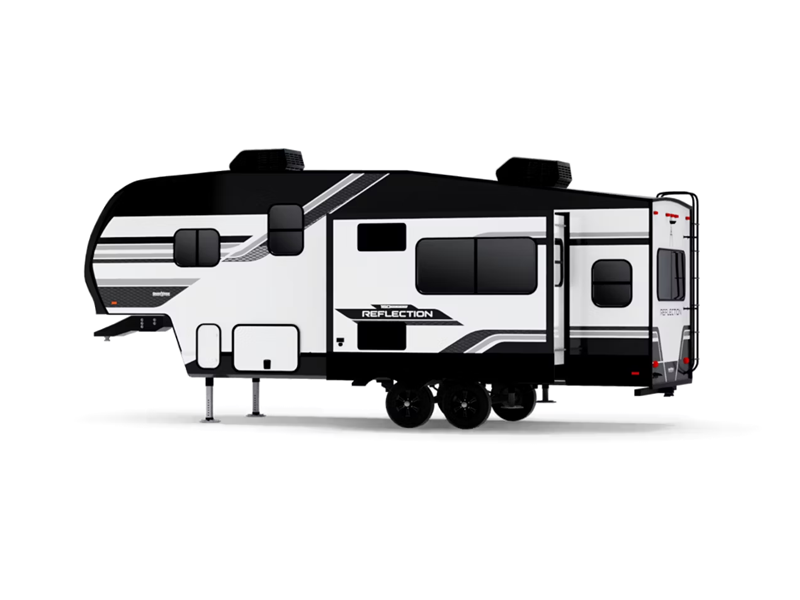

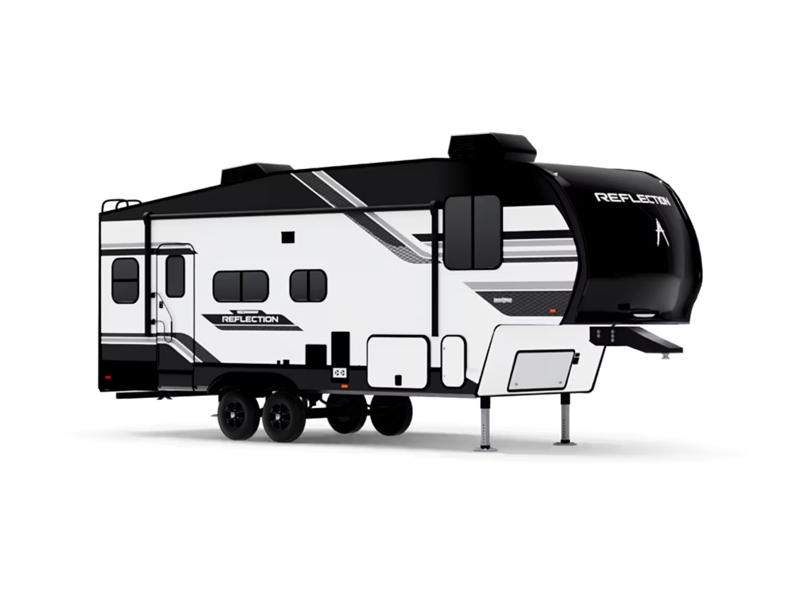

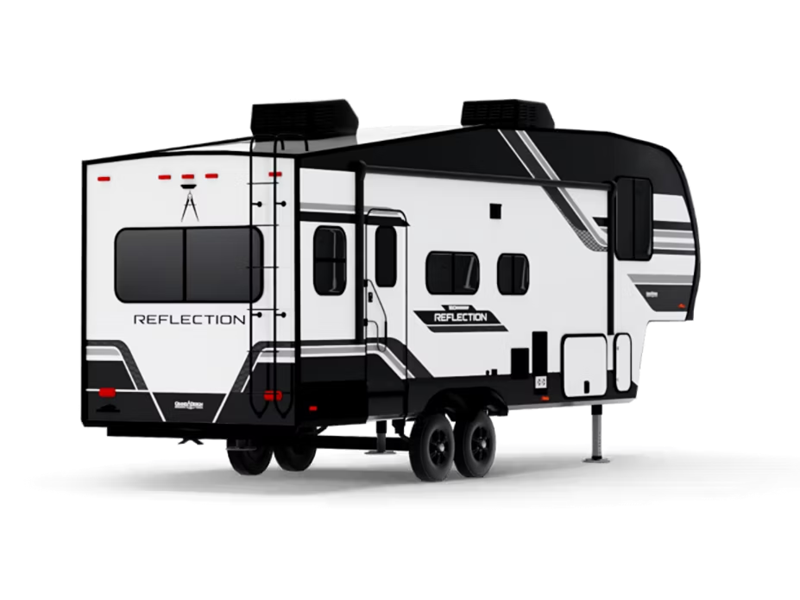

Grand Design Reflection 150 Series Fifth Wheel

Previous
Next
1 of 10

Grand Design is proud of the spacious interior and luxury features offered in the Reflection 150 Series fifth wheel. The 150 Series is specifically designed for those half-ton towable and short-bed trucks, and provides a hitch that features a 90 degree turning radius without the use of a slider hitch.



You will also find these units to be over 1,000 lbs lighter than competitors with dry weights starting at under 7,000 lbs, and with all of the many features that come standard, you can't go wrong with any of them.  You will also find mandatory packages that include tons of features such as a heated and enclosed underbelly with circulating heat and a heated pass-through storage area in the Arctic 4-Season Protection package, plus in the Power package you will appreciate the One-Touch automatic leveling system, the motion sensor entry LED lighting and the HDMI/AM/FM/CD/DVD Bluetooth stereo system.  And the Peace of Mind package offers features such as an upgraded 2" receiver hitch with four prong connection and residential cabinetry.



Come get a Reflection 150 Series fifth wheel by Grand Design, and see how half-ton towable has been redefined!

  • Reflection 150 Series 295RL

    Reflection 150 Series 295RL Floorplan Image

    Grand Design Reflection 150 Series fifth wheel 295RL highlights: Booth Dinette ... more about Reflection 150 Series 295RL

    Specifications

    Sleeps 5
    Slides 2
    Length 32 ft 9 in
    Ext Width 0 ft
    Ext Height 12 ft 3 in
    Int Height 0 ft
    Hitch Weight 1391 lbs
    Gross Weight 10195 lbs
    Dry Weight 8496 lbs
    Fresh Water Capacity 52 gals
    Grey Water Capacity 78 gals
    Black Water Capacity 39 gals
    Furnace BTU 35000 btu
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 2
    LP Tank Capacity 30 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Quick Recovery
    AC BTU 15000 btu
    TV Info LR 40" LED
    Awning Info 13' 6" & 10'6" Power Adjustable w/LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Electrical Service 50 amp

    Similar Floorplans

  • Reflection 150 Series 230RL

    Reflection 150 Series 230RL Floorplan Image

    Take a Virtual Tour

    Grand Design Reflection 150 Series fifth wheel 230RL highlights: U-Shaped ... more about Reflection 150 Series 230RL

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Length 28 ft 1 in
    Ext Width 0 ft
    Ext Height 12 ft
    Int Height 0 ft
    Hitch Weight 1195 lbs
    Gross Weight 9495 lbs
    Dry Weight 6888 lbs
    Fresh Water Capacity 52 gals
    Grey Water Capacity 71 gals
    Black Water Capacity 39 gals
    Furnace BTU 35000 btu
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    LP Tank Capacity 30 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Quick Recovery
    AC BTU 15000 btu
    TV Info LR HD LED
    Awning Info 17' Power Adjustable w/LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Electrical Service 50 amp

    Similar Floorplans

  • Reflection 150 Series 240RL

    Reflection 150 Series 240RL Floorplan Image

    Grand Design Reflection 150 Series fifth wheel 240RL highlights: U-Shaped ... more about Reflection 150 Series 240RL

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Length 29 ft 11 in
    Ext Width 0 ft
    Ext Height 12 ft
    Int Height 0 ft
    Hitch Weight 1272 lbs
    Gross Weight 9495 lbs
    Dry Weight 7691 lbs
    Fresh Water Capacity 52 gals
    Grey Water Capacity 71 gals
    Black Water Capacity 39 gals
    Furnace BTU 35000 btu
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    LP Tank Capacity 30 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Quick Recovery
    AC BTU 15000 btu
    TV Info LR 50" LED
    Awning Info 17' Power Adjustable w/LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Electrical Service 50 amp

    Similar Floorplans

  • Reflection 150 Series 260RD

    Reflection 150 Series 260RD Floorplan Image

    Take a Virtual Tour

    Grand Design Reflection 150 Series fifth wheel 260RD highlights: U-Shaped ... more about Reflection 150 Series 260RD

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Length 29 ft 9 in
    Ext Width 0 ft
    Ext Height 12 ft
    Int Height 0 ft
    Hitch Weight 1325 lbs
    Gross Weight 9495 lbs
    Dry Weight 7225 lbs
    Fresh Water Capacity 52 gals
    Grey Water Capacity 71 gals
    Black Water Capacity 39 gals
    Furnace BTU 35000 btu
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 12 cu ft
    Cooktop Burners 3
    Shower Size 30" X 36"
    Number of Awnings 1
    LP Tank Capacity 30 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Quick Recovery
    AC BTU 15000 btu
    TV Info LR 40" LED
    Awning Info 20' Power Adjustable w/LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Electrical Service 50 amp

    Similar Floorplans

  • Reflection 150 Series 268BH

    Reflection 150 Series 268BH Floorplan Image

    Grand Design Reflection 150 Series fifth wheel 268BH highlights: Double Size ... more about Reflection 150 Series 268BH

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Slides 1
    Length 31 ft 11 in
    Ext Width 0 ft
    Ext Height 12 ft
    Int Height 0 ft
    Hitch Weight 1274 lbs
    Gross Weight 9495 lbs
    Dry Weight 7791 lbs
    Fresh Water Capacity 52 gals
    Grey Water Capacity 71 gals
    Black Water Capacity 39 gals
    Furnace BTU 35000 btu

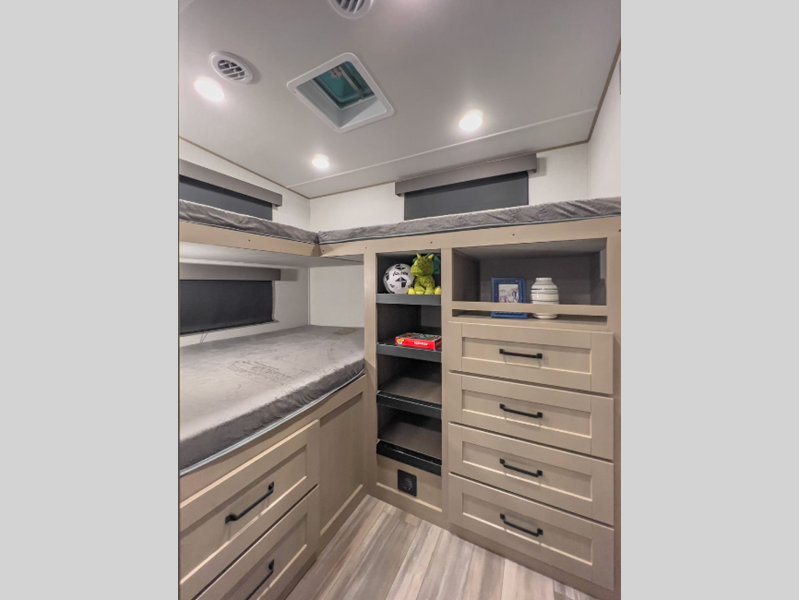

    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    LP Tank Capacity 30 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Quick Recovery
    AC BTU 15000 btu
    TV Info LR 40" LED
    Awning Info 19' Power Adjustable w/LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Electrical Service 50 amp

    Similar Floorplans

  • Reflection 150 Series 273MK

    Reflection 150 Series 273MK Floorplan Image

    Grand Design Reflection 150 Series 273MK fifth wheel highlights: Tri-Fold Sofa ... more about Reflection 150 Series 273MK

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 1
    Length 29 ft 11 in
    Ext Width 0 ft
    Ext Height 12 ft
    Int Height 0 ft
    Exterior Color Ivory
    Hitch Weight 1328 lbs
    Gross Weight 9495 lbs
    Dry Weight 7416 lbs
    Fresh Water Capacity 52 gals
    Grey Water Capacity 71 gals
    Black Water Capacity 39 gals
    Furnace BTU 35000 btu
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    LP Tank Capacity 30 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Quick Recovery
    AC BTU 15000 btu
    TV Info LR 40" LED TV
    Awning Info 18' Electric One-Touch w/LED Light
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Reflection 150 Series 290BH

    Reflection 150 Series 290BH Floorplan Image

    Take a Virtual Tour

    Grand Design Reflection 150 Series fifth wheel 290BH highlights: Private ... more about Reflection 150 Series 290BH

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Slides 1
    Length 34 ft 1 in
    Ext Width 0 ft
    Ext Height 12 ft
    Int Height 0 ft
    Hitch Weight 1280 lbs
    Gross Weight 10195 lbs
    Dry Weight 8194 lbs
    Fresh Water Capacity 52 gals
    Grey Water Capacity 78 gals
    Black Water Capacity 39 gals
    Furnace BTU 35000 btu
    Number Of Bunks 3
    Available Beds Queen
    Refrigerator Type Double Door
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    LP Tank Capacity 30 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Quick Recovery
    AC BTU 15000 btu
    TV Info LR 40" LED
    Awning Info 20' Power Adjustable w/LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Electrical Service 50 amp

    Similar Floorplans

Reflection 150 Series Features:

Standard Features (2020)

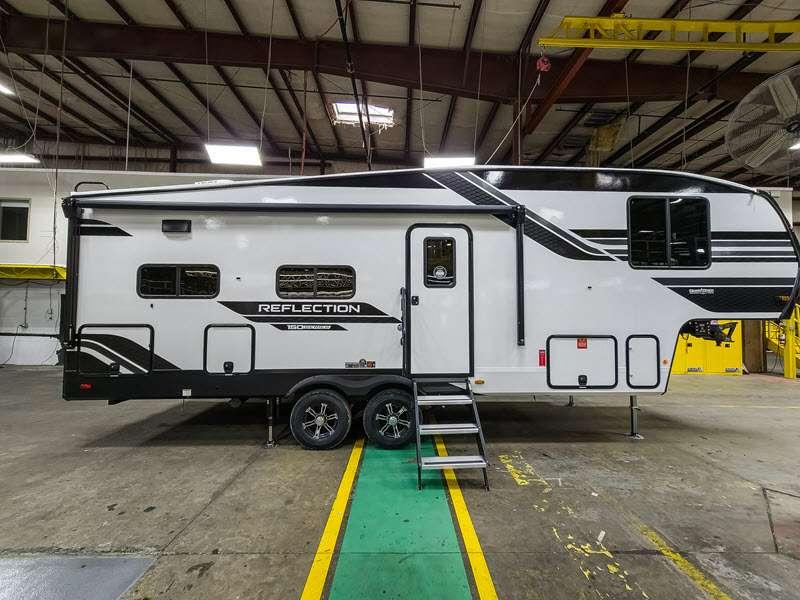

Exterior

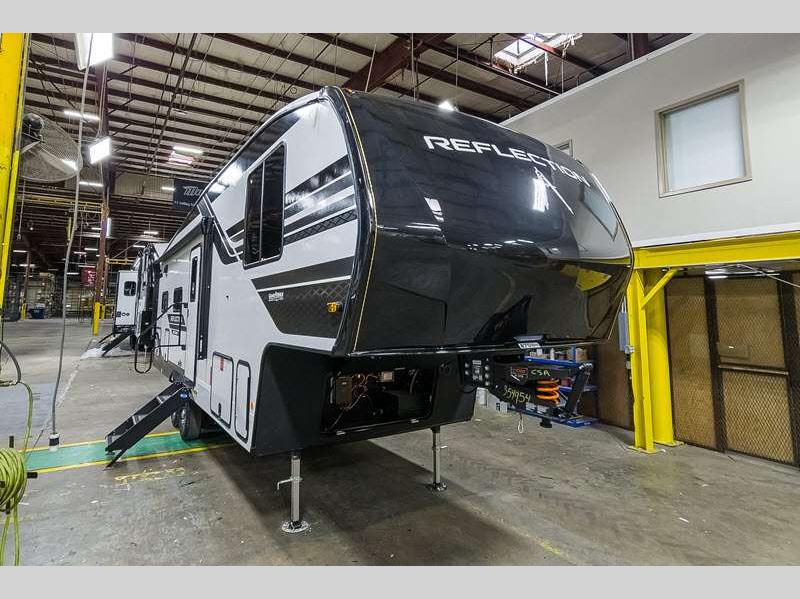

  • Aerodynamic Front Cap with Max Turn Radius
  • Marine Grade LED Hitch Light
  • Rubberized Suspension Equalizer
  • Aluminum Wheels with E-Rated Tires
  • 80% Tint Radius Safety Glass Windows

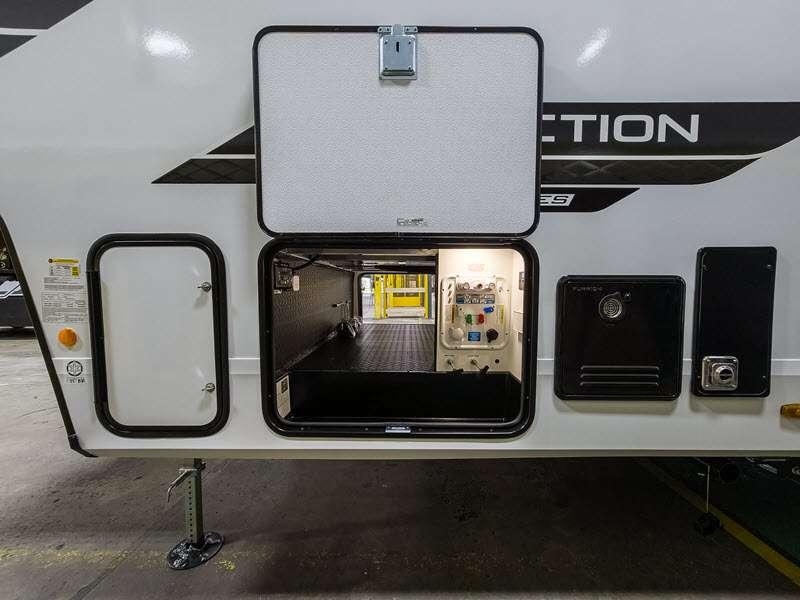

  • Battery Kill Switch in Pass Thru Storage Area
  • 90 Degree Turn Radius Pin Box
  • 30# LP Bottles (2)
  • 30" Radius Entry Door
  • Outside Speakers
  • Outside Shower
  • Factory Installed Roof Ladder
  • Under Carriage Spare Tire and Carrier
  • High-Capacity Water Pump with Interior and Exterior Switch
  • Extra Large 1-1/2" Fresh Water Drain Valve

Construction

  • Gel Coated Ivory Fiberglass Exterior
  • Residential 5" Truss Rafters (16" O.C.)
  • Walk On Roof Decking
  • Fiberglass and Radiant Foil Roof and Front Cap Insulation
  • One-Piece TPO Roof Membrane with 12-Year Warranty
  • Easy Access Low Point Drain Valves
  • Laminated Aluminum Framed Rear Wall (R-9)
  • Laminated Aluminum Framed Side Walls (R-9)
  • Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-9)
  • Aluminum Framed Main Floor (R-30*)
  • Residential Wood Framed Roof (R-40*)

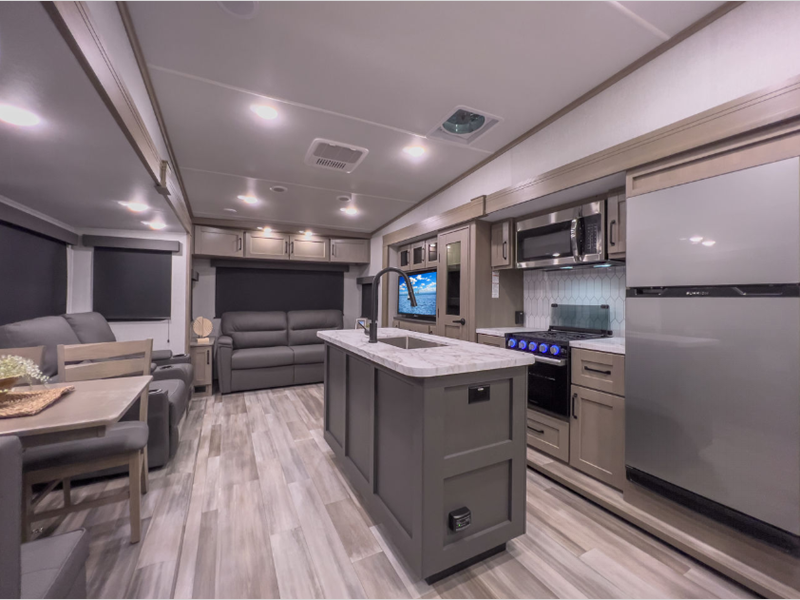

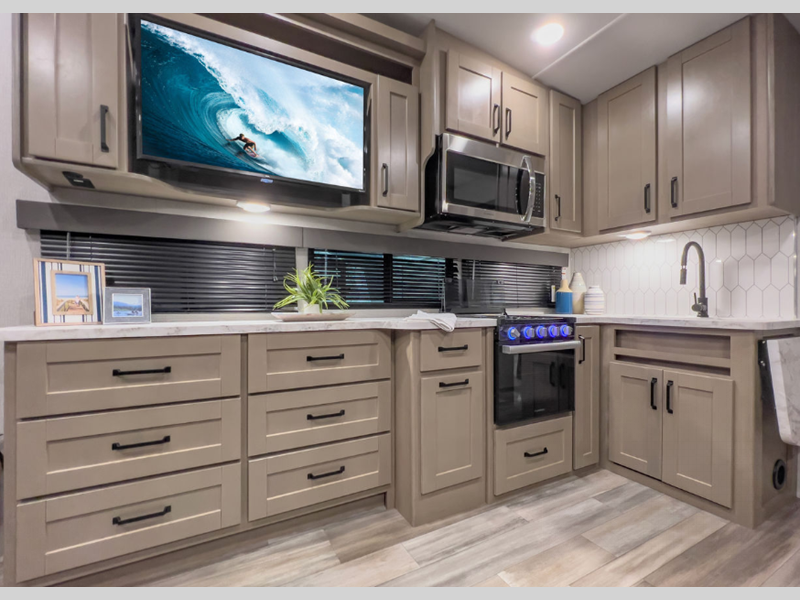

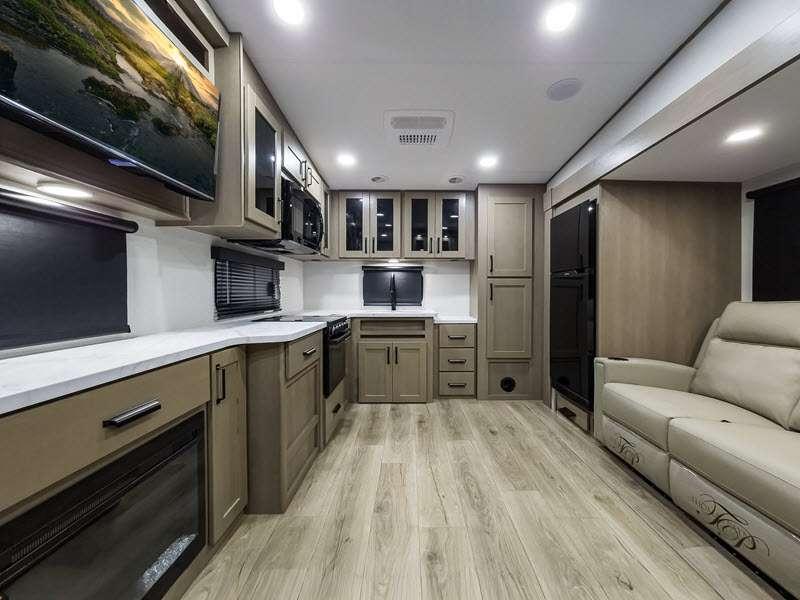

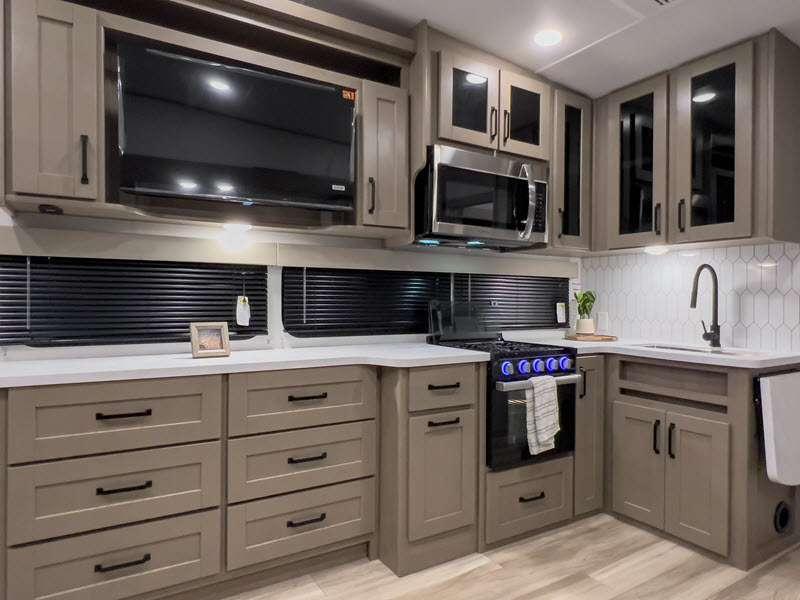

Kitchen

  • Gunstock Fixtures and Hardware
  • Deep, Under-mount Kitchen Sink
  • Hardwood Galley Slide Trim Moldings and End Caps

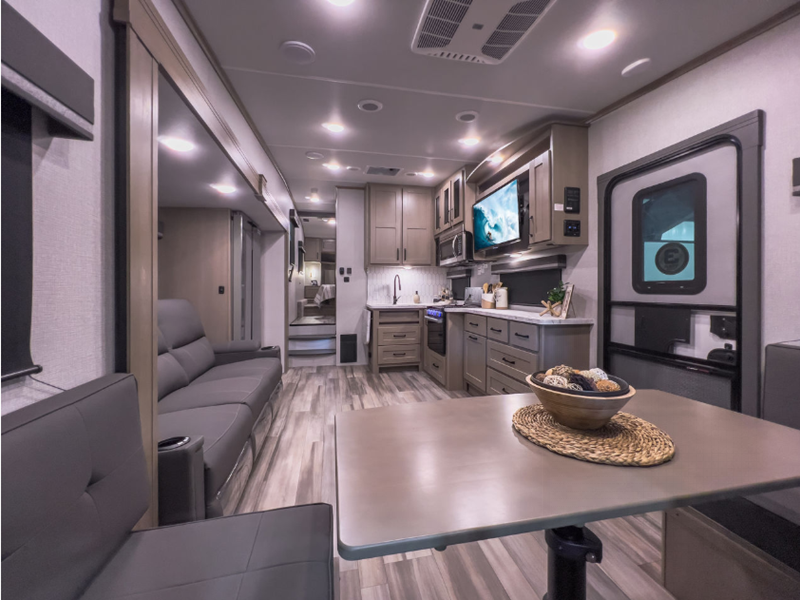

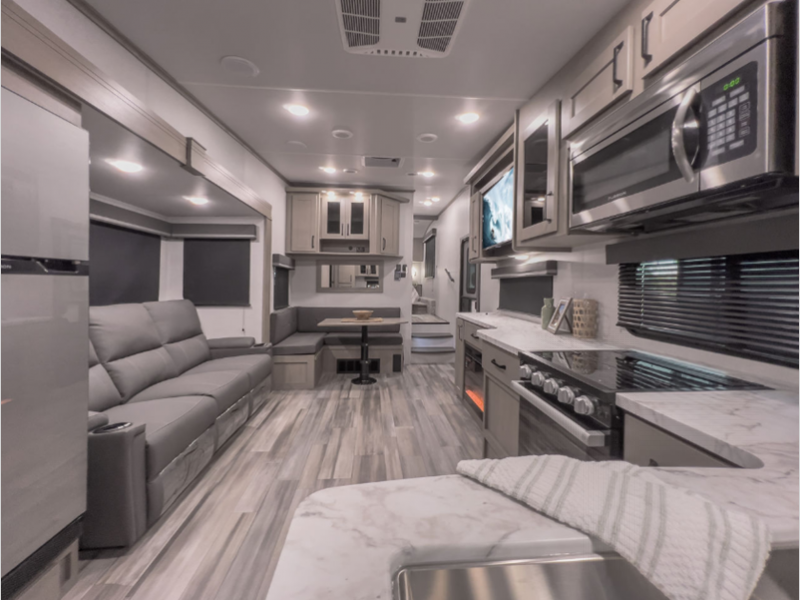

Interior

  • Residential Gunstock Hardware
  • Solid Hardwood Drawer Fronts
  • Louvered Tread Steps to Bedroom
  • Solid Core Cabinet Stiles
  • Pre-Drilled and Screwed Cabinetry

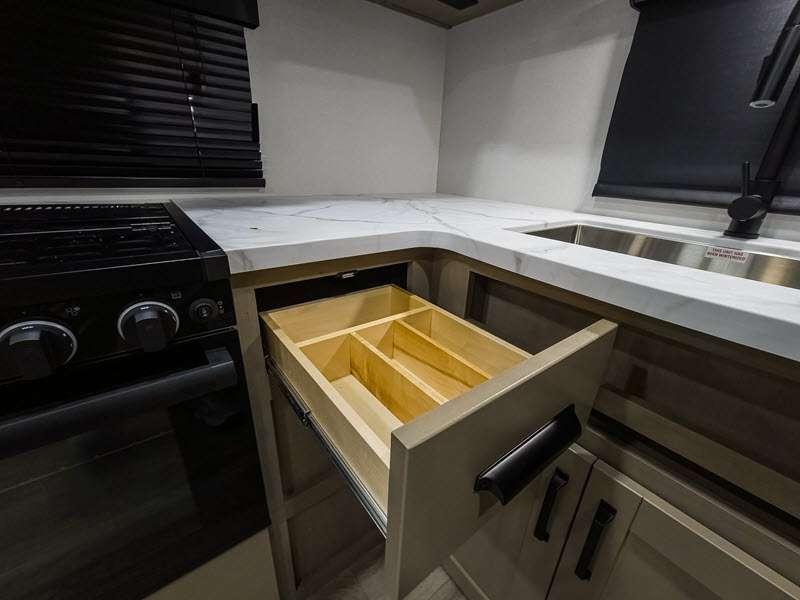

  • Ball Bearing Full Extension Drawer Glides
  • Large Panoramic Slide Room Windows
  • Heated Wall Hugger Theatre Seats w/LED Lights & Massage (Most Models)
  • Premium Congoleum Flooring
  • Ductless Flooring Throughout Living Area
  • Residential Style Window Treatment
  • Roller Shades
  • LED Lighting Throughout with Motion Sensors (Key Areas)

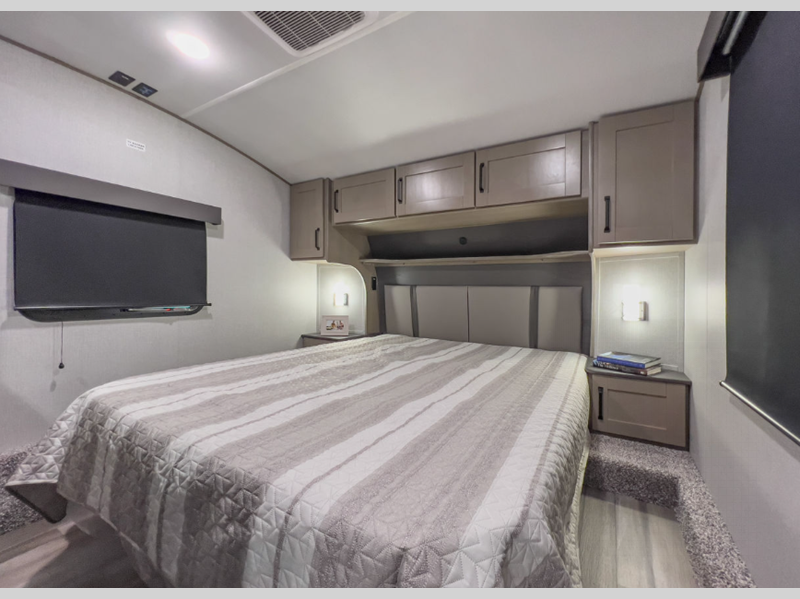

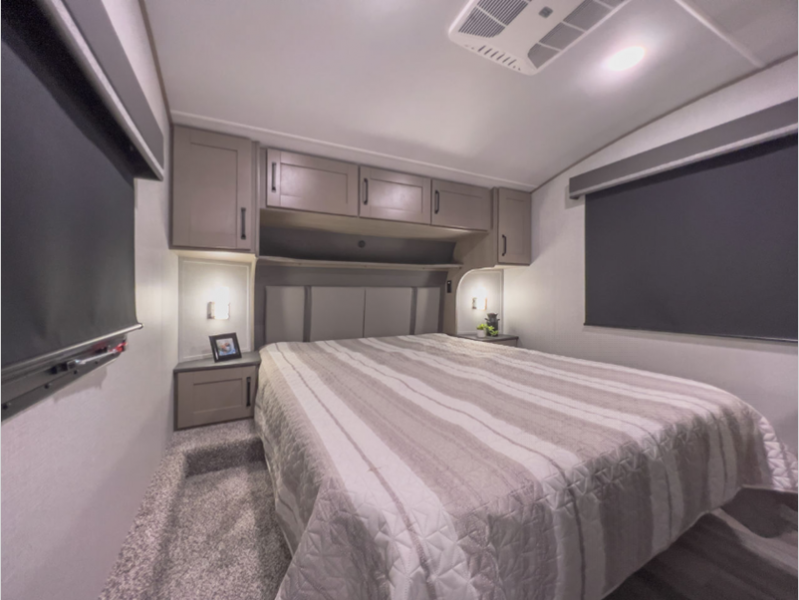

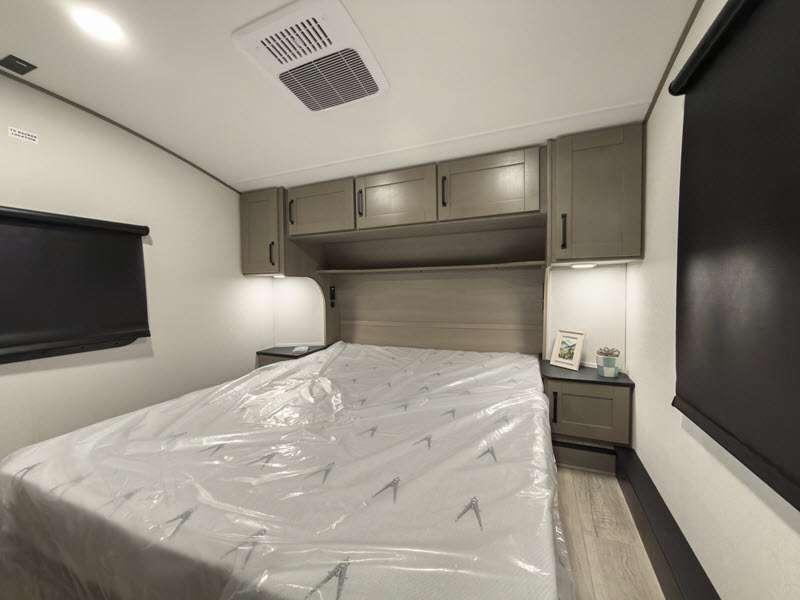

Bedroom

  • King Size Wardrobe
  • Oversized Underbed Storage
  • 60 x 80 Mattress with Residential Bedspread
  • Bedroom Heat Registers
  • Closeable A/C Vents
  • Cable/SAT Prep

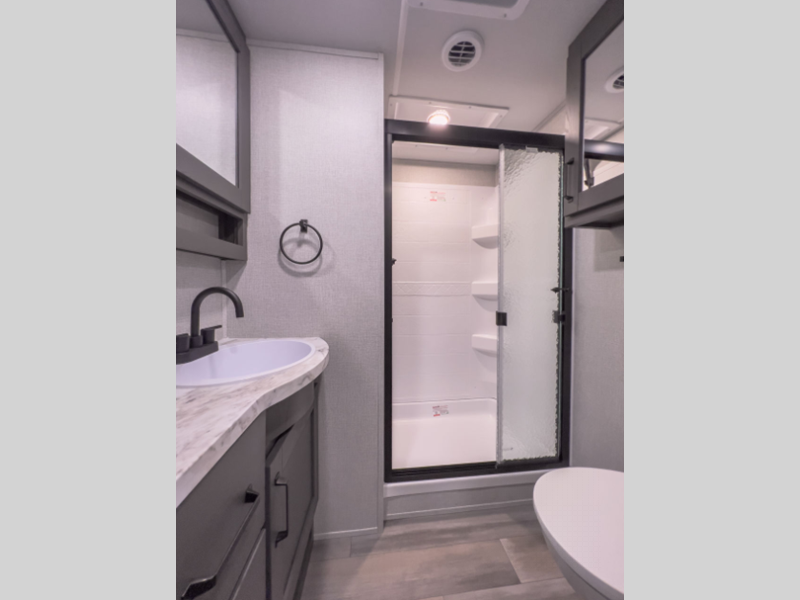

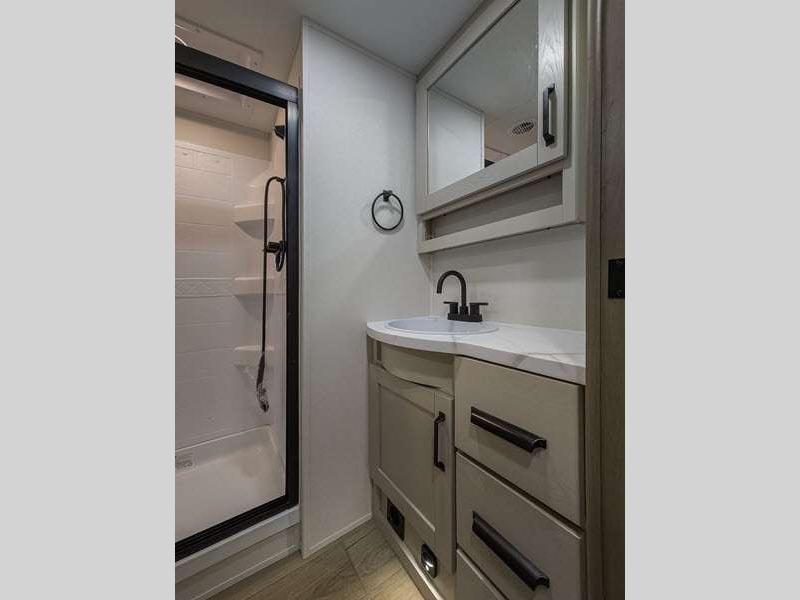

Bathroom

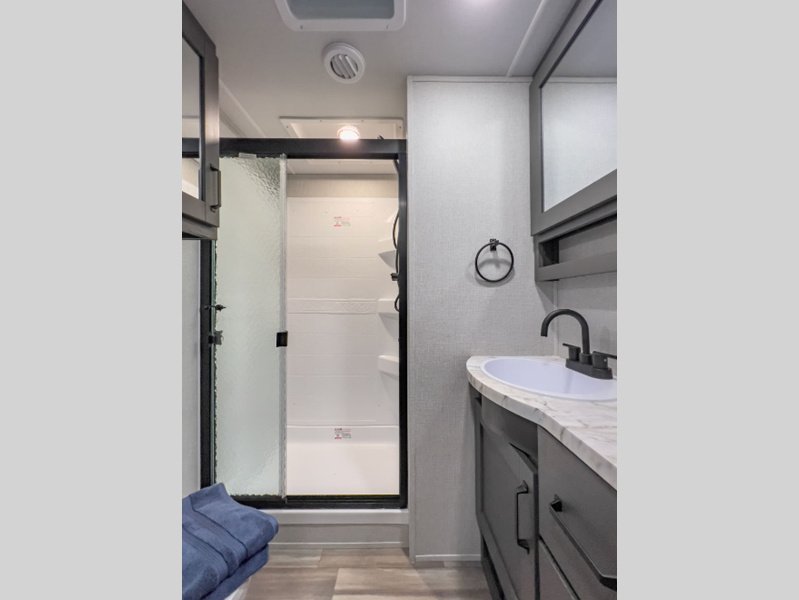

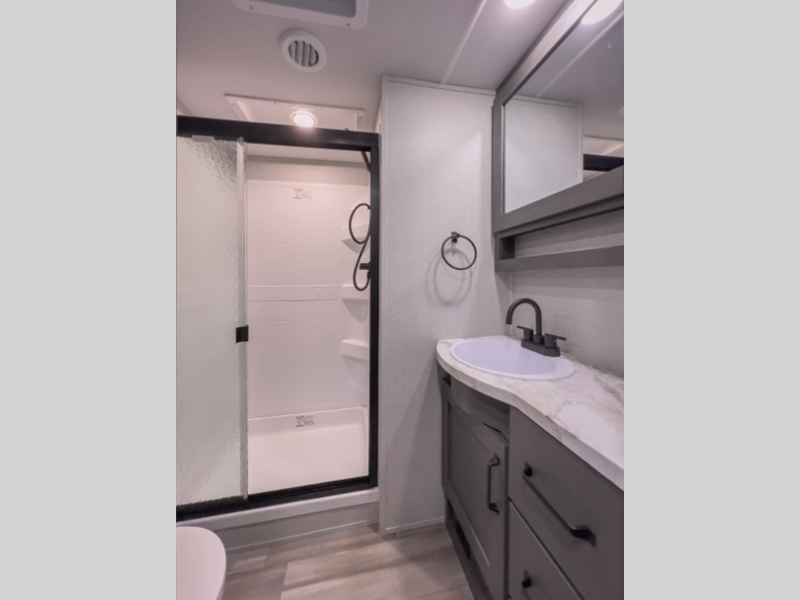

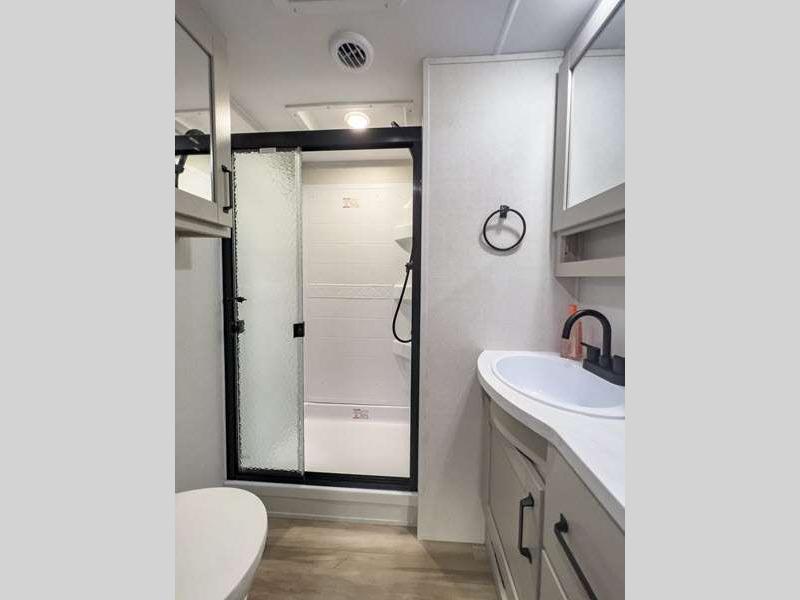

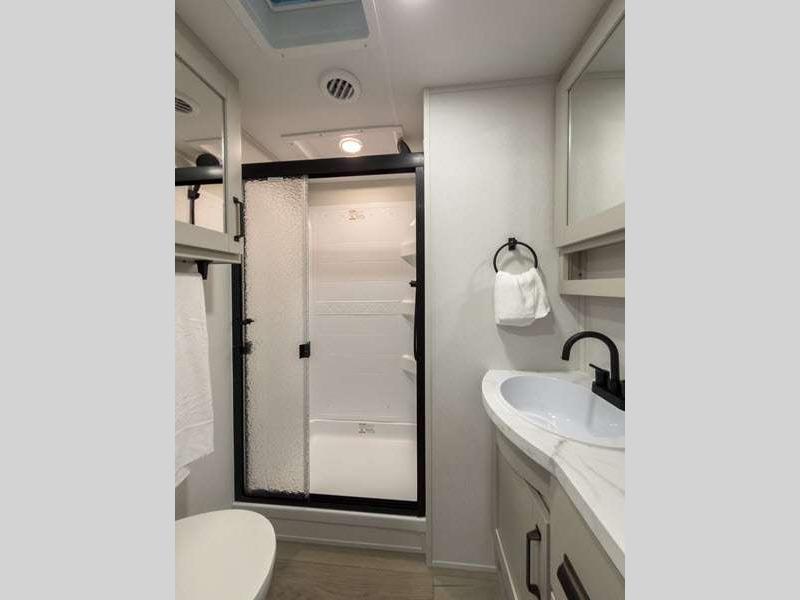

  • 30" x 36" Residential Walk-In Shower
  • Wide View Skylight Over Shower
  • Heat Duct and A/C Vents in Bathroom
  • Power Vent Fan
  • Extra Large Lav Top with Stainless Steel Sink
  • Large Medicine Cabinet with Mirror

Options

  • Free Standing Table w/Storage Ottoman (Model Specific)
  • Dual Pane Windows
  • 72" Tri-fold Sofa IPO Theatre Seating (230RL only)
  • 2nd AC Low Profile 13.5k BTU
  • 78" Theatre Seating IPO Dinette (Model Specific)
  • 12 cu. ft. Refrigerator IPO 8 cu. ft. Refrigerator (260RD - Forced)
  • 60" Tri-Fold IPO Theatre Seating (Model Specific)

Peace of Mind Package (Mandatory)

  • 90 Degree Turn Radius Pin Box (Turning Point)
  • Aluminum Entry Steps
  • 8 Cu. Ft. Refrigerator
  • Deep-Seated Stainless Steel Sink with Cover
  • Residential Pulldown Sprayer Faucet
  • Walk-on Roof
  • Residential Cabinetry
  • Universal All-In-One Docking Station
  • 17.8 Gal./Hr. Quick Recovery Water Heater
  • Black Tank Flush
  • Aluminum Rims
  • Spare Tire & Carrier
  • Nitrogen Filled Radial Tires
  • Metal Slam Latch Front Cargo Doors
  • Roller Shades
  • Painted Fiberglass Front Cap
  • Upgraded 2" Receiver Hitch w/ 4 Prong Connection
  • 6' Coiled Break Away Cable

Power Package (Mandatory)

  • One-Touch Automatic Leveling System
  • 30" Stainless Steel Microwave
  • Adjustable Power Awning w/ LED Lights
  • LED Interior Lighting
  • Motion Sensor Pass Thru Lighting (LED)
  • HDMI/AM/FM/CD/DVD Bluetooth Stereo System
  • High Definition LED Television w/Swing-arm (Living Area)
  • 50 AMP Electrical Service
  • High Definition LED TV (Living Area)
  • Detachable Power Cord w/LED Light
  • 15k Ducted Main A/C
  • Motion Sensor Entry Lighting (LED)
  • Roof Mounted Solar Prep
  • Exterior Cable Hookup (Sidewall)

Arctic 4-Seasons Protection Package (Mandatory)

  • 12v Heat Pads on Holding Tanks
  • 35k BTU High Capacity Furnace
  • Double Insulated Roof & Front Cap
  • Heated & Enclosed Dump Valves

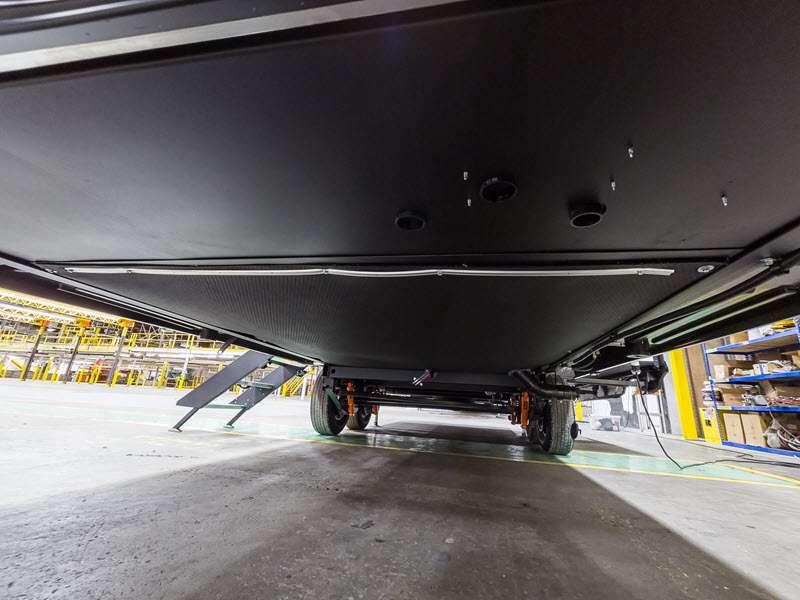

  • Heated & Enclosed Underbelly w/Circulating Heat
  • Thermofoil Insulated Underbelly (Under Holding Tanks)
  • EZ Winterization (Valve in Utility Center)
  • Heated Pass Thru Storage Area
  • Dual Attic Vents
  • Insulated Slide Out Floors

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

Manu-Facts:

Grand Design Logo
Thank you for taking the time to look at Grand Design RV.  We would like to share some insights into what sets Grand Design RV Company apart from all other RV manufacturers and why this difference is important to you.   We were part of the original ownership team that led a top RV Manufacturer to become the largest travel trailer and fifth wheel company in the world.  While proud of our accomplishments at this company,  it became difficult to stay in touch with the needs of our customers, employees and ultimately the products we built.  In 2011, we set out to pursue our dream and re-establish the personal connection we had enjoyed with customers and dealers.  The result is Grand Design RV Company.  Starting with a blank canvas, we were able to do things differently than what had been done before.

After achieving unparalleled years of growth, Grand Design formed an alliance with one of the industry's most iconic brands...Winnebago. Operating as an independent business within Winnebago Industries provides additional financial stability and enables us to continue Grand Design's unique way of doing business for our current and future customers.

LONG TERM VALUE Everything we do at our company is designed to build long term value in what we offer our customers, “more features and superior value for your dollar.”

CUSTOMER FOCUS Our focus (from the very first day we opened our doors) revolves around our customers.

STAYING CONNECTED Magic happens when the President and Senior Management are all actively working in the production facilities to help build the team and develop products.

EXPERIENCED WORKFORCE Our local workforce has been hand-picked, and has an excellent reputation for quality craftsmanship that is second to none.

CLASS LEADING WARRANTY  We back every one of our coaches by a 3-year limited structural warranty.

RAISING THE QUALITY BAR   We put every Grand Design unit through a series of quality inspection gates during the manufacturing process.  Once completed, the unit undergoes a comprehensive final finish inspection.  From here, most manufacturers ship their units on to the dealer for retail sale.  Not Grand Design...Every one of our units are shipped to a separate PDI (Pre-Delivery Inspection) location where they are again put through a 280+ point inspection process.  It is only after this that we deem a unit ready to ship to our dealers.

SUPERIOR SERVICE  We deliver the highest quality in the industry, but anything built by humans can be subject to issues.  It’s how those issues are addressed that stands out with Grand Design.  Don’t just take our word for it, visit the owners page on Facebook (Grand Design RV Owners) and see for yourself how we take care of our customers after the sale.  An informed customer will be a Grand Design customer!

At Grand Design our goal is simple...Continue leading the industry with quality products while improving the customer's RV experience before, during, and after the sale.
